Small-Diameter Metal Tubing — At-a-Glance

Tight tolerances, ultra-smooth bores, and certified quality for medical, aerospace, electronics, and industrial applications. See our Alloys, Dimensions, Tube Features, and Certifications below.

Core Capabilities
OD 0.008–0.300" ID to 0.005" Wall to 0.0015" ±0.0002" Tolerances Coils to 1500 ft Lengths to 240"
Materials

Alloys

  • Stainless Steels: 304/304L, 316L, 316LVM, 321, 347
  • Nickel Alloys: Nickel 200, 52 Alloy, 42 Alloy, Kovar/Rodar, Invar
  • Nickel-Chrome Alloys: Inconel 600, Inconel 625, Inconel X750, Hastelloy C22
  • Aluminum Alloys: 1100, 3003, 5052, 6061
  • Copper Alloys: Copper 101, Copper DHP, 70Cu/30Ni
  • Misc Alloys: NiAg 752, Brass 270, PhBz 510, Silver, Low-carbon steel, 304/Copper clad
Dimensions

Dimensions

  • OD range: 0.008–0.300"
  • ID as low as 0.005"
  • Wall thickness to 0.0015"
  • Dimensional tolerance to ±0.0002"
  • Straight lengths: 0.030" – 240.0"
  • Continuous coils up to 1500 ft
Features

Features

  • OD/ID surface finish < 16 Ra
  • Burr-free ends
  • Eccentricity < 10%
  • Concentricity < 10%
  • Ultrasonic cleaning
  • Eddy current testing
Certifications

Certifications & Self-Declarations

  • ISO 13485:2016
  • ISO 9001:2015
  • AS9100D
  • California Proposition 65

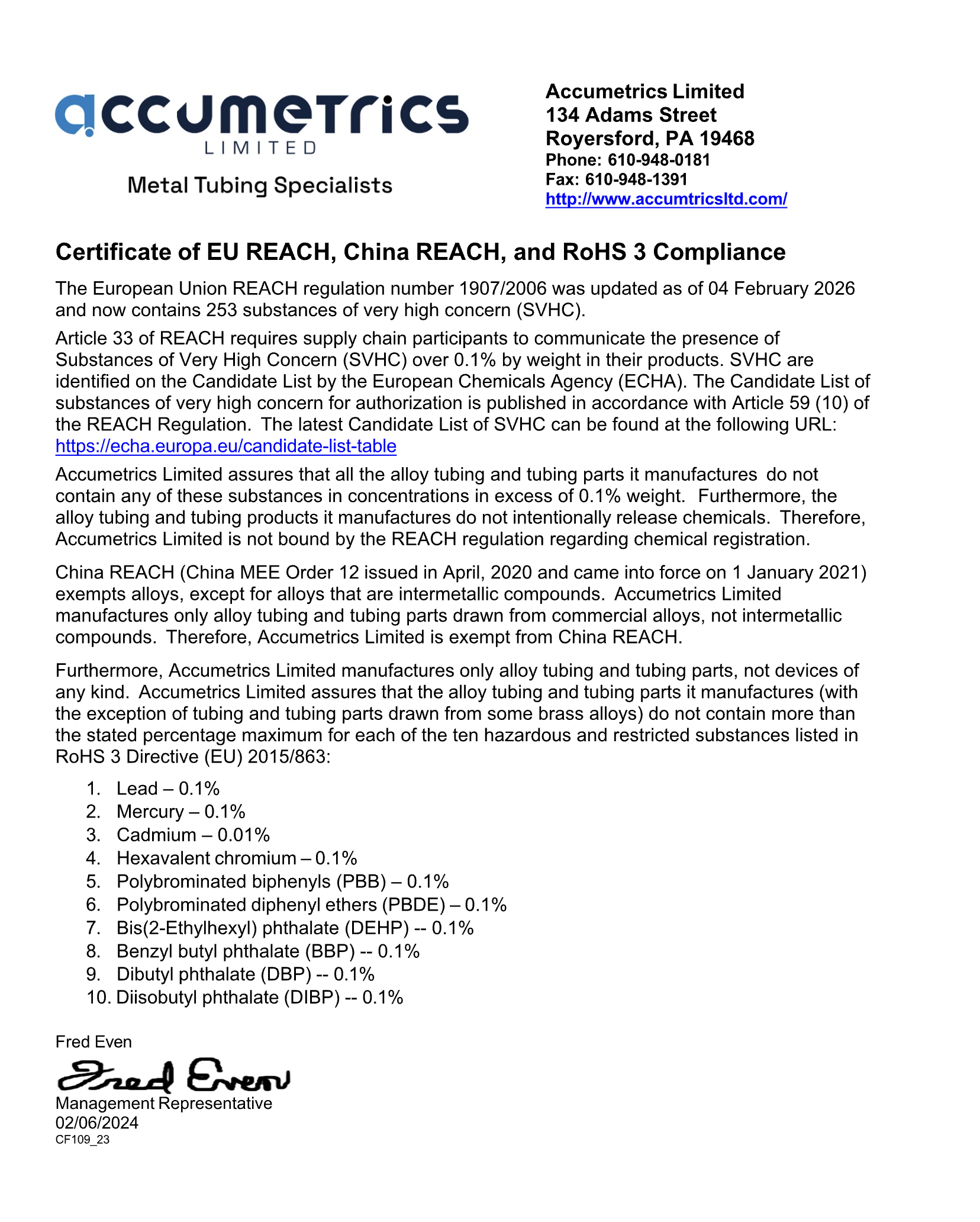

  • EU REACH compliant
  • China REACH compliant
  • RoHS 3 compliant
  • Registered with DDTC (ITAR) — parts 122 & 129

Accumetrics Company Documents

Supplier Purchase Order Terms & Conditions Proposition 65 — Compliance EU Medical Device Regulation Declaration EU REACH • China REACH • RoHS 3 Latex-Free Declaration PFOA • PFOS • PFAS Free Declaration
